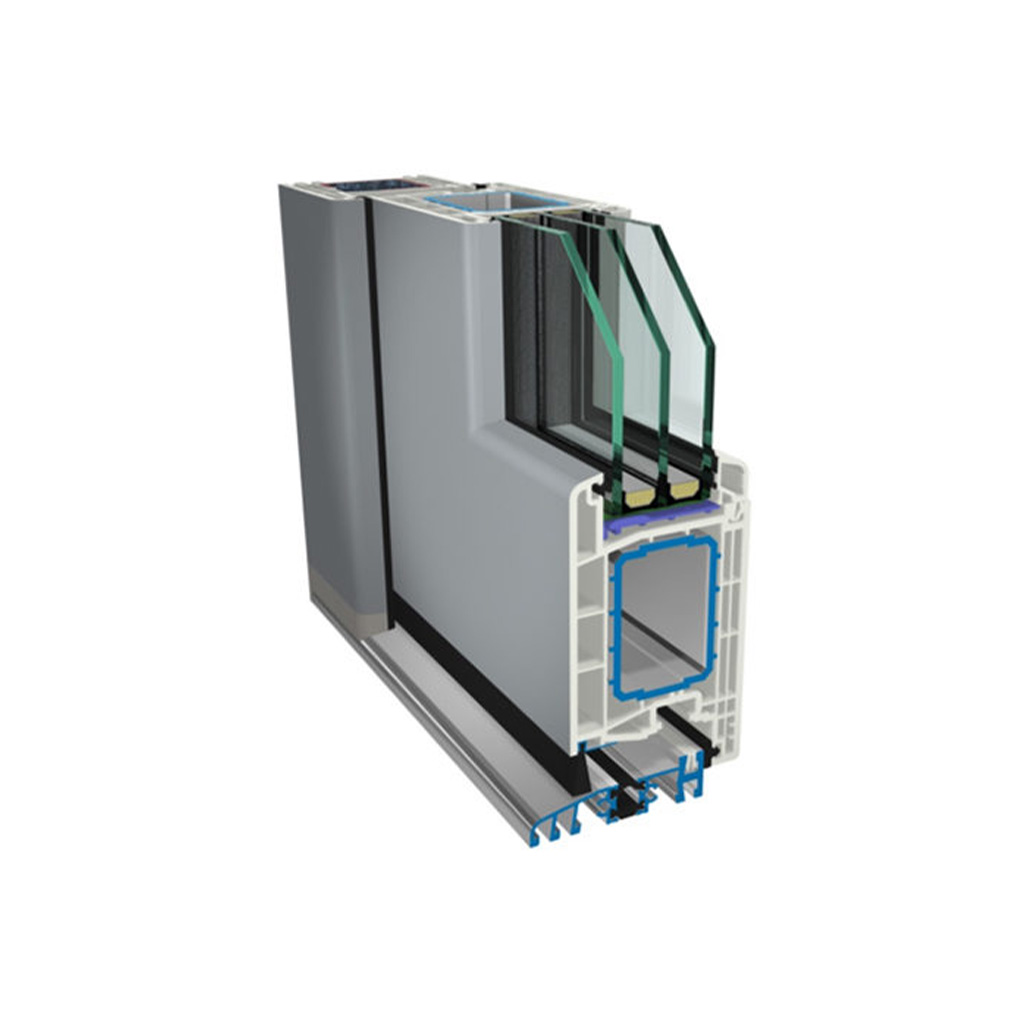

S 8000

Nothing is impossible. Profiles and thresholds are available for every application, perfectly adapted to the desired function and construction situation. Thanks to its geometry, the system is particularly suitable for door production. Furthermore, by using large-diameter aluminum reinforcements, it combines lightness with previously unimaginable levels of stability.

Advantages & Features

Thermal and Acoustic Insulation
A 74 mm construction depth ensures good thermal and acoustic insulation. Thermal insulation Uf up to 1.2 w/(m2.K)

Efficient Use
The intelligent geometry of the PVC profiles optimizes material use, conserving resources and thus protecting the environment.

Large Main Chamber
Large chambers to accommodate large steel reinforcements

Greater Comfort and Climate
Greater comfort and a more pleasant indoor climate thanks to the patented GECCO ventilation system (on request), for a well-regulated exchange of indoor and outdoor air.

Suitable for glass and panels
Suitable for use with glass and panels up to 40 mm thick

Low threshold with excellent thermal insulation
The new floor threshold for doors and entrance doors is a key addition to the GEALAN product range. Can be used flexibly in all 74 mm and 83 mm systems

Color Palette
Available in numerous GEALAN-acrylcolor® shades, RAL foils, and wood-effect finishes

DOOR PROFILE
Dynamic design, wide selection of variants, slimline windows, and large reinforcements in the frame and sash

Performance
• Uf = 1.2 W/m²K
• Watertightness (EN 12208): Class 9A
• Air permeability (EN 12207): Class 4
• Wind load resistance (EN 12210): Class C2/RC 2 N
• Acoustic insulation: From 34 dB to 47 dB
• Thermal transmittance: Uw = 0.90 W/(m²K)

Types
1. Hinged door / Opening from inside or outside
2. Hinged door and fixed panel / Opening from inside or outside
3. Panic door
