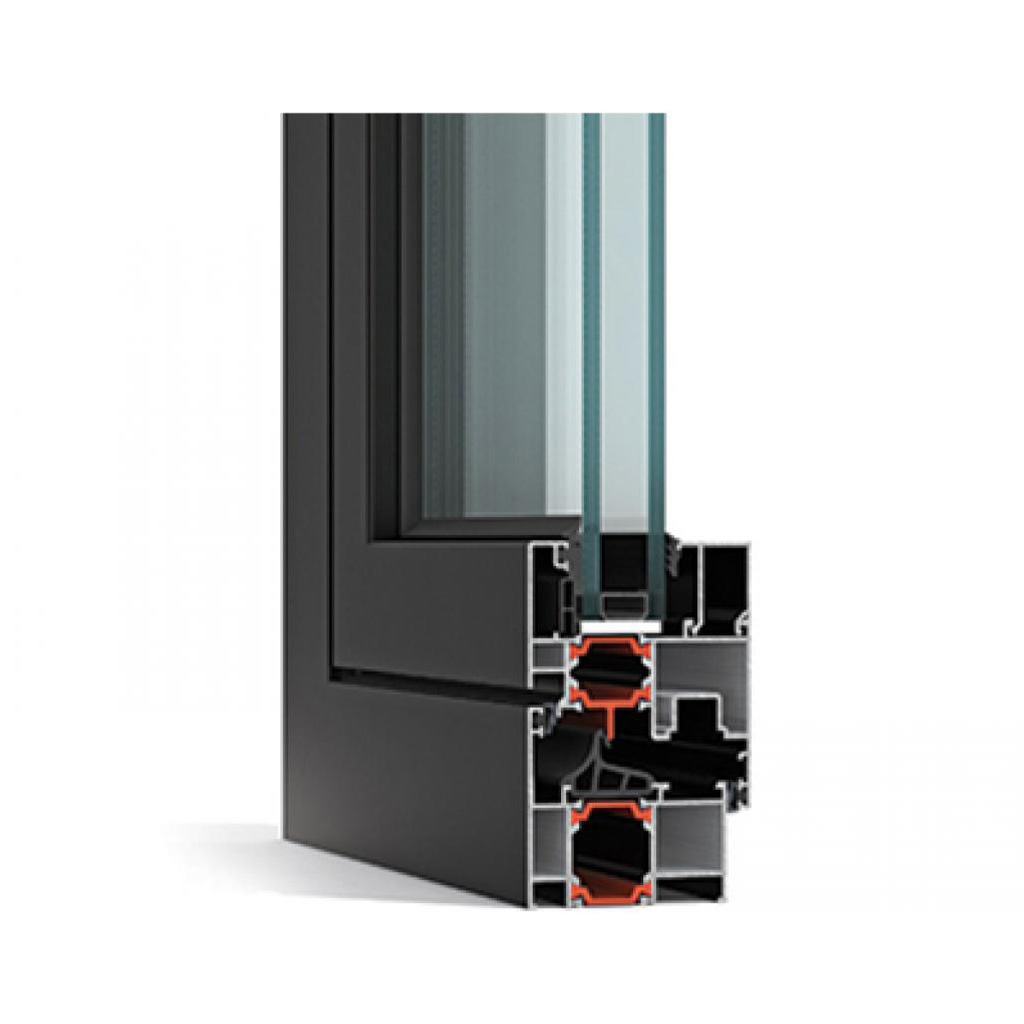

W 450
The W450 system is a next-generation thermal insulation system designed with attention to detail to meet contemporary architectural demands for energy efficiency and safety. This line's wide range of profiles offers numerous innovative solutions, from flat to curved sections, as well as the ability to apply complex typologies such as hinged doors, pivot windows, and concealed sash frames, achieving a high-end aesthetic. The available profiles integrate seamlessly with high-quality components and mechanisms, highlighting the system's versatile and ergonomic nature. The system's top priority in terms of maximum energy savings and high security is ensured by the option of perimeter locking and the use of 24 mm reinforced polyamides, which offer a thermal insulation index of Uf = 2.2-2.6 W/m²K.

Features & Benefits

• Energy savings thanks to thermal performance
• Multi-chamber central gasket that ensures optimal waterproofing
• Ease of use and high functionality
• High level of security thanks to multiple perimeter locking
• Modern design
• Simplified accessibility in compliance with regulations for people with special needs and children
• Concealed hardware available
• Suitable for both double and triple glazing
• Wide range of types and solutions
• Greater static resistance and functionality
• Ideal solution for homes and buildings with high energy demands.
• Window type: Casement
• Thermal insulation: Yes
• External shape: Flat

Technical characteristics

• Frame depth: 59.5 mm
• Sash depth: 67.0 mm
• Minimum aluminum profile width: 102 mm
• Sash weight: Up to 150 kg
• Glazing type: Double or triple
• Maximum glazing thickness: 15-50 mm
• Mechanism: Euro-groove, Euro-nut
• Sealing method: Perimeter on 3 levels with EPDM gaskets
• Minimum threshold height: 20 mm
• Thermal insulation type: 24 mm polyamide, Kooltherm Q3, insulating foam

Performance

• Uf = 2.2-2.6 W/m²K
• Water tightness (EN 12208): Class 8A
• Air permeability (EN 12207): Class 4
• Wind load resistance (EN 12210): Class C3/B3
• Acoustic performance: 39 dB
• Burglary resistance: RC1/RC2/RC3
• Thermal transmittance Uw = 1.4 W/m2K

Types
1.Single-sash casement window
2.Double-sash casement window
3.Single-sash casement French door with low threshold
4.Double-sash casement French door with low threshold
5.Single-sash casement/tilt and turn window with fixed transom
6.Double-sash casement/tilt and turn window with fixed transom
7.Double-sash casement/tilt and turn window with opening transom
