Features & Benefits
• Maximum energy savings thanks to exceptional thermal performance
• Greater natural light thanks to the system’s minimalist design
• Ease of use and high functionality
• High level of security
• Modern design
• Simplified accessibility in compliance with regulations for people with special needs and children
• Wide range of types and solutions
• Greater static resistance and functionality even in extreme weather conditions
• Window type: casement
• Thermal insulation: yes
• External shape: flat

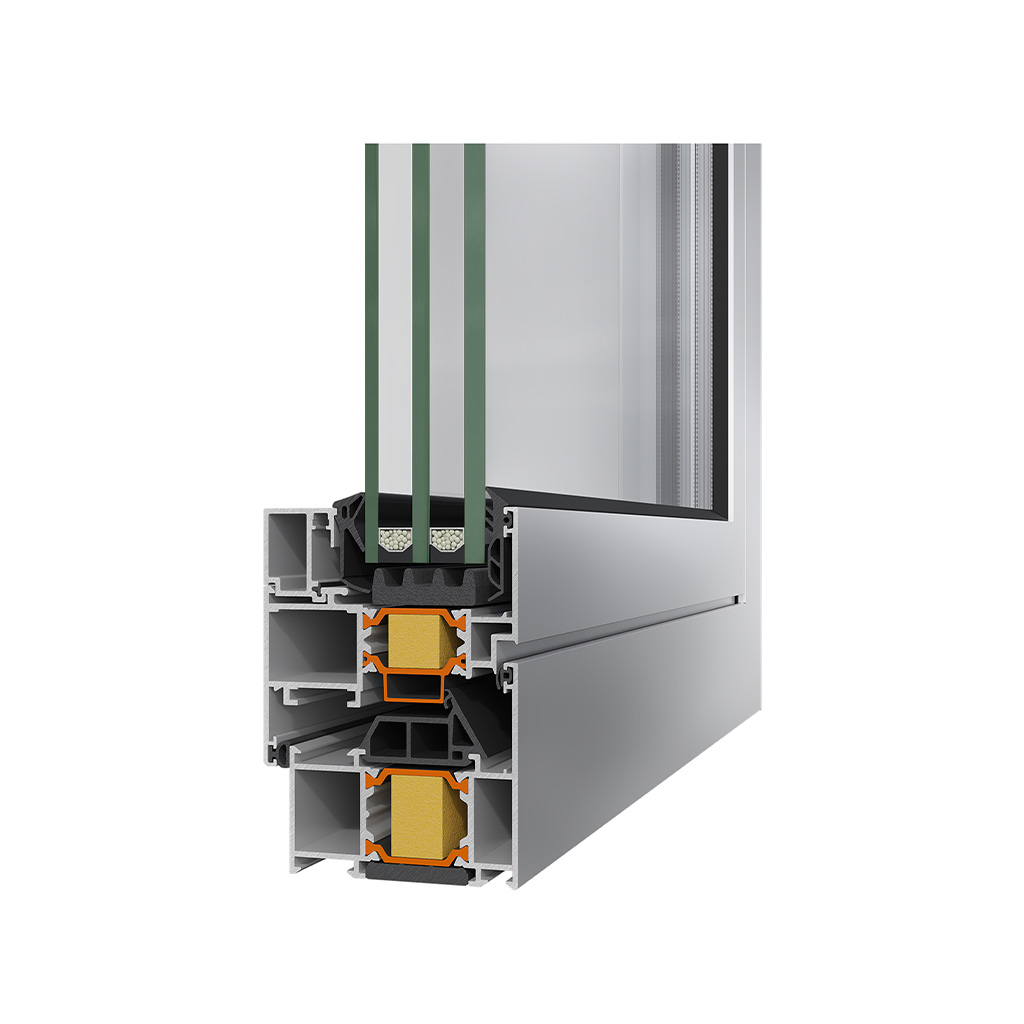

Technical characteristics
• Frame depth: 67 mm
• Sash depth: 75 mm
• Minimum visible surface height: 102.8 mm
• Minimum central profile width: 151 mm
• Sash weight: up to 180 kg
• Glazing type: Double – Triple
• Maximum glazing thickness: 28 – 58 mm
• Mechanism: Euro-groove, Euro-nut
• Sealing method: 3-level perimeter with EPDM gaskets
• Minimum threshold height: 13 mm
• Thermal insulation type: 30 mm polyamide, Kooltherm, insulating foam
Performance
• Uf = 1.1 – 2.6 W/m²K
• Watertightness (EN 12208): Class 4A
• Air permeability (EN 12207): Class 4
• Wind load resistance (EN 12210): Class C3
• Thermal transmittance: Uw = 1.3 W/(m²K)
• Burglar resistance: RC1/RC2/RC3
Types
1. Single-sash casement/tilt and turn window
2. Double-sash casement/tilt and turn window
3. Single-sash French door with low threshold
4. Double-sash French door with low threshold
5. Single-sash casement/tilt and turn window with fixed transom
6. Double-sash casement/tilt and turn window with fixed transom
7. Double-sash casement/tilt and turn window with opening transom
