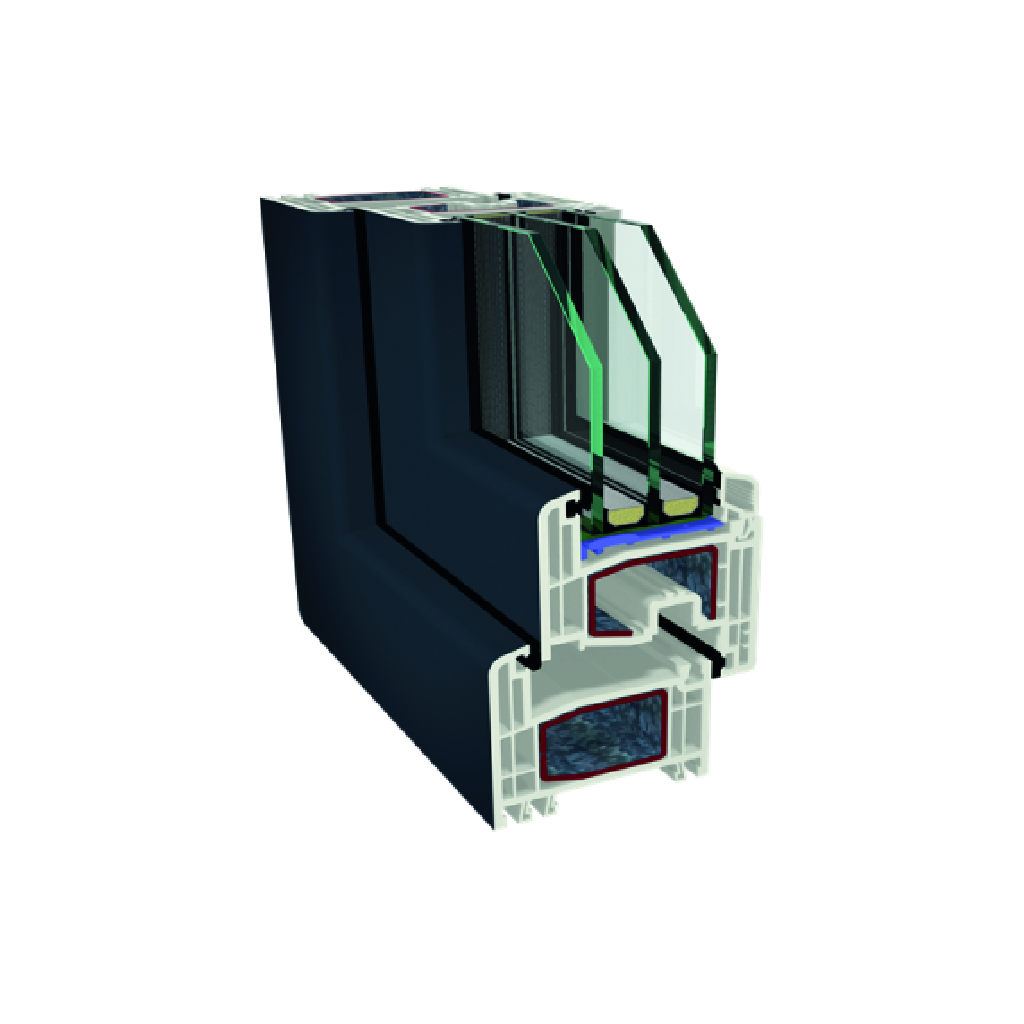

S 8000 windows
When developing the S 8000 PVC profile system, great attention was paid to profile stability. The main chamber, designed to accommodate the steel reinforcements, is therefore generously sized. The result is very high bending resistance of the standard reinforcements, greatly enhancing profile stability. This allows for the creation of large-sized elements and allows window and door manufacturers to meet the demands of large-format windows.

Advantages & Features

Thermal and Acoustic Insulation
The 74 mm construction depth ensures good thermal and acoustic insulation. Thermal insulation Uf up to 1.2 w/(m2.K)

Efficient use
The intelligent geometry of the PVC profiles optimizes material use, conserving resources and thus protecting the environment.

Large main chamber
Large chambers to accommodate large steel reinforcements

A single steel reinforcement
Only one type of steel reinforcement for the frame, sashes, and mullions

Greater comfort and climate
Greater comfort and a more pleasant indoor climate thanks to the patented GECCO ventilation system (on request), for well-regulated indoor-outdoor air exchange.

Color Palette
Available in numerous GEALAN-acrylcolor® shades, RAL foils, and wood-effect finishes.

Maximum element height
Depends on the width of the window and the resulting total surface area. Large windows are subjected to high forces on the elements. Robust steel reinforcements ensure high torsional strength and allow for the production of large-format PVC windows.

Flexible multi-chamber structure
S 8000 5-chamber
S 8000 6-chamber

Performance
• Uf = 1.2 W/m²K
• Watertightness (EN 12208): Class 9A
• Air permeability (EN 12207): Class 4
• Wind load resistance (EN 12210): Class C3
• Thermal transmittance: Uw = 0.90 W/(m²K)

Types

1. Single-sash casement/tilt and turn window
2. Double-sash casement/tilt and turn window
3. Single-sash casement French door with low threshold
4. Double-sash casement French door with low threshold
5. Single-sash casement window/tilt and turn window with single sash and fixed transom
6. Double-sash casement/tilt and turn window and fixed transom
7. Double-sash casement/tilt and turn window and opening transom
8. Possibility of other products on request
